3D Model For Balun Using FT240-43

As my Ham Radio hobby has expanded I have made more baluns....in need of a enclosure to house my 240 type 43 I made the following ...enjoy!!

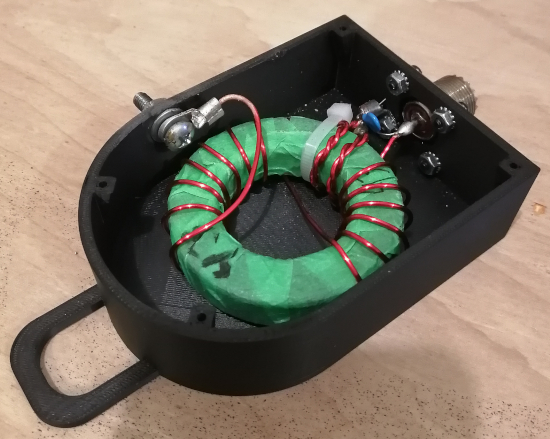

Should fit all 240 size torroid rings....I have a hole made for the so-239 and main wire...I don't need a mount for a counterpoise for the end fed half wave I made so I didnt include a mounting hole for that. If you need one easy to drill it out.


If your looking for info on the winding and capacitor check out the making a end fed half wave page.


Download the design HERE
